Product code RBD52G-5HacD2HnD-TC

Architecture ARM 32bit

CPU IPQ-4018

CPU core count 4

CPU nominal frequency 716 MHz

Switch chip model IPQ-4018

Dimensions 34 x 119 x 98mm

RouterOS license 4

Operating System RouterOS

Size of RAM 128 MB

Storage size 16 MB

Storage type FLASH

MTBF Approximately 100'000 hours at 25C

Tested ambient temperature -40°C to 50°C

IPsec hardware acceleration Yes

Suggested price $79.00

Wireless capabilities Details

Wireless 2.4 GHz Max data rate 300 Mbit/s

Wireless 2.4 GHz number of chains 2

Wireless 2.4 GHz standards 802.11b/g/n

Antenna gain dBi for 2.4 GHz 2.5

Wireless 2.4 GHz chip model IPQ-4018

Wireless 2.4 GHz generation Wi-Fi 4

Wireless 5 GHz Max data rate 867 Mbit/s

Wireless 5 GHz number of chains 2

Wireless 5 GHz standards 802.11a/n/ac

Antenna gain dBi for 5 GHz 2.5

Wireless 5 GHz chip model IPQ-4018

Wireless 5 GHz generation Wi-Fi 5

WiFi speed AC1200

Ethernet Details

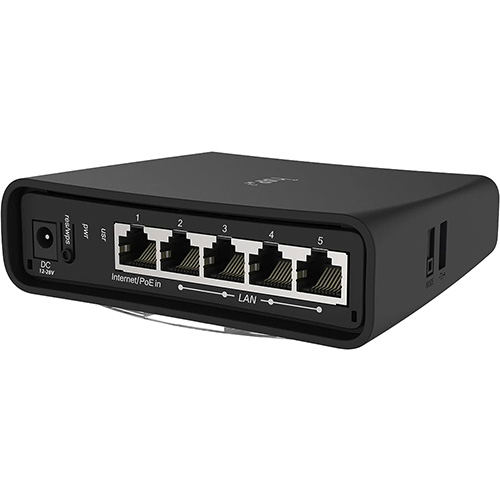

10/100/1000 Ethernet ports 5

Peripherals Details

Number of USB ports 1

USB Power Reset Yes

USB slot type USB type A

Max USB current (A) 1

Powering Details

Number of DC inputs 2 (DC jack, PoE-IN)

DC jack input Voltage 12-30 V

Max power consumption 21 W

Max power consumption without attachments 16 W

Cooling type Passive

PoE in Passive PoE

PoE in input Voltage 18-28 V
