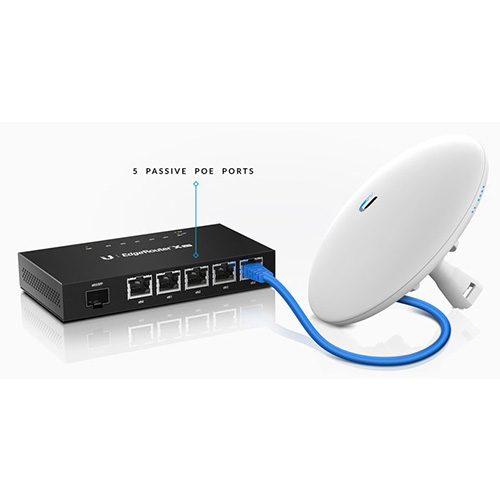

(5) GbE RJ45 ports with 24V passive PoE
(1) SFP port
50W total PoE availability
Dimensions 142 x 75 x 23 mm (5.59 x 2.95 x 0.91\")
Weight 215 g (7.58 oz)
Hardware
Processor Dual-Core 880 MHz, MIPS1004Kc
Memory 256 MB DDR3 RAM
Code Storage 256 MB NAND
Max. Power Consumption 5W
Power Input 24VDC, 2.5A Power Adapter (Included)
Power Supply External AC/DC Adapter
Supported Voltage Range 9 to 26VDC
Buttons Reset
LEDs Power, Link/Activity (6), PoE (5)
Wall Mount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
Certifications CE, FCC, IC
Networking Interfaces
Data/PoE Input Port (5) 10/100/1000 RJ45 Ports
Data Port (1) 100/1000 SFP Port
PoE with 24VDC Power Adapter
PoE Out Voltage Range 22-24VDC
Max. PoE Wattage Per Data Port 12W (24V)
Max. PoE Wattage Combined for All 5 Data Ports 50W
PoE Method Passive
"
