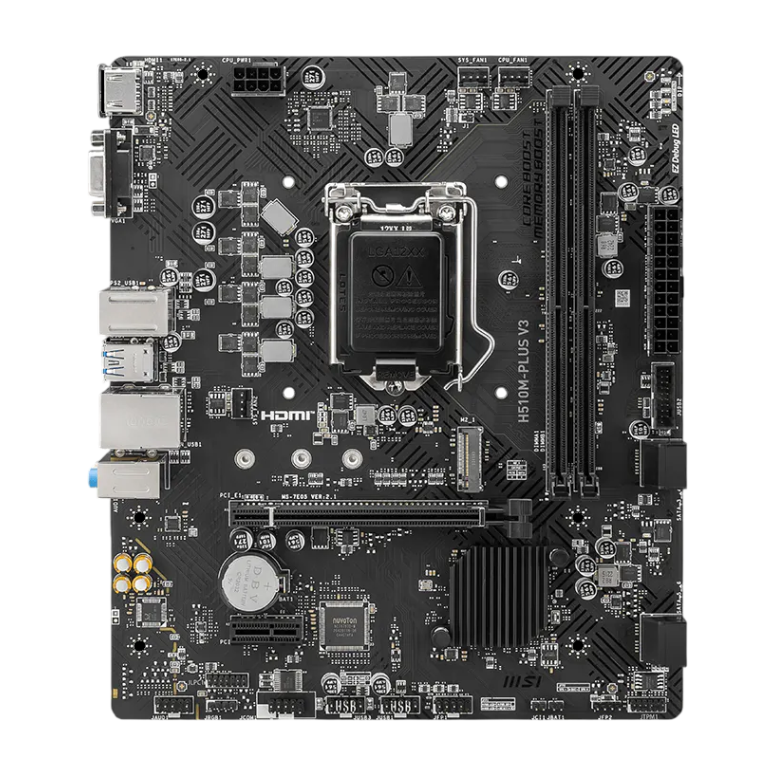

MSI H510M PLUS V3

ChipsetINTEL H470

CPUSupports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket

Memory2x DDR4, Maximum Memory Capacity 64GB

Memory Support 2933/ 2666/ 2400/ 2133 MHz

Supports 1R 2133/ 2666/ 2933 MHz for Intel^® Core™ i9/ Core™ i7 CPU

Supports 1R 2133/ 2666 MHz for Intel^® Core™ i5/ Core™ i3/ Pentium^® Gold and Celeron^® CPU

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel^® Extreme Memory Profile (XMP)

Onboard Graphics1x HDMI™

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

1x D-Sub

Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot1x PCI-E x16 slot (Qty)

1x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

AudioRealtek^® ALC897 Codec

7.1-Channel High Definition Audio

Storage1x M.2 (Qty)

M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G (Qty)

USB4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

LANRealtek^® 8111H Gigabit LAN

Internal IO1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

LED FEATURE4x EZ Debug LED

1. BACK PANEL PORTSHDMI™
2. VGA
3. Keyboard / Mouse
4. USB 3.2 Gen 1 5Gbps (Type-A)
5. LAN port
6. Audio Connectors
7. USB 2.0
8. USB 2.0

OPERATING SYSTEMSupport for Windows^® 11 64-bit, Windows^® 10 64-bit

PCB InfomATX

202mmx236mm
