About
Product ID 005877

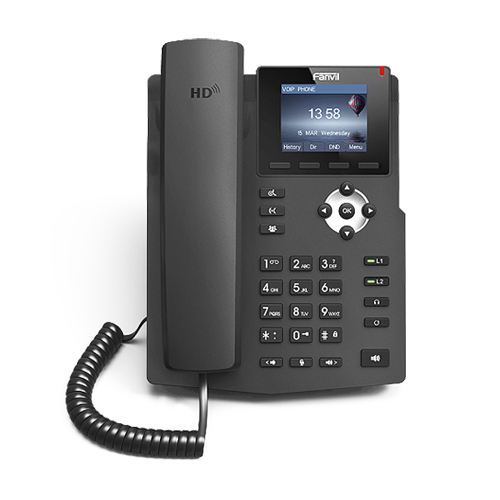

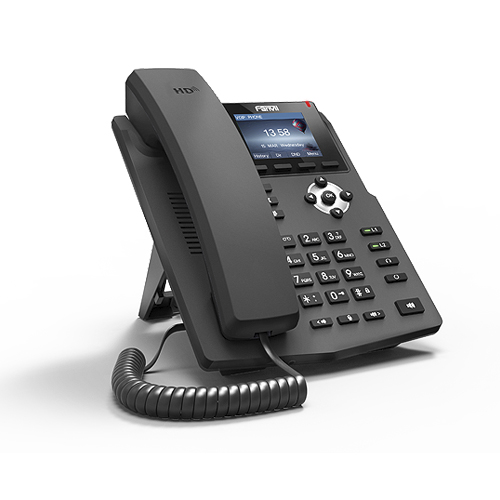

• Fanvil's new X3S series including X3S, X3SP and X3G take entry-level IP phones to a level never achieved before. Making full-use of high-quality materials, plus an extra-large 320x240 2.4 inch (X3G: 2.8 inch) color LCD, it offers a smoother user experience, much more visual information at a glance, plus HD Voice characteristics. Dual 10/100 Mbps(X3G: 10/100/1000 Mbps) network ports with integrated PoE are ideal for extended network use. The X3S series supports two VoIP accounts, simple, flexible and secure installation options, Open VPN. It also operates with SRTP/ HTTPS/ TLS, 802.1x. As a very cost-effective and powerful IP solution, the X3SP maximizes productivity in both small and large office environments.
• 2.4\"/2.8\" Color Screen, Smart and Friendly User InterfaceThe new X3S/G combines the advantages of existing enterprise phone UI design experience
  with color screen. The UI appearance and operating experience have a qualitative leap.
• High-functionality Equipped for Office Working
• Support EHS Wireless HeadsetSupport EHS Wireless Headset, Professional Enterprise VoIP phone.
• Web Page with Mobile PhoneScan X3S/G screen's QR code to get
  into web page. Web page access with
  mobile phone at anytime, anywhere
• Phone HotspotSeveral phones share one number from server, and each phone has its extension
  number to contact/transfer/conference others.

Specifications

Main functions

• 4 SIP lines
• Support HD quality audio
• Friendly graphical interface with built-in help menu
• Operating mode Handset/Speakerphone/Headset
• Desktop version and wall mounting option
• Compliance with standards: CE/FCC

Call handling functions

• Call Hold
• Mute the microphone
• Waiting for a call
• Transfer of a call (with or without notification)
• Caller ID support
• Transfer of a call (Unconditional/By employment/If there is no response)
• Repeat the call
• Support for \"Do not disturb!\" mode (DND)
• Auto response
• Voice mail (depends on the server)
• 3-party conference
• Hotline

Additional phone functions

• Quick Configurator
• Customizable pins for user accounts
• Built-in phone book for 500 entries
• Remote phonebook support via XML, LDAP
• Blacklist support
• Call log for a total of 300 entries
• Voice mail indication
• Support for the NTP time synchronization protocol

Audio

• HD quality Microphone and speakerphone (0~7kHz)
• Support for narrowband codecs: G.711A/U, G.723.1, G.726-32K, G.729AB
• Broadband codec: G.722
• Echo cancellation with a duration of 96ms
• Speech Activity Detection (VAD) / Comfort Noise Generation(CNG)
• Compensation for lost packages (PLC)
• Dynamic buffer jitter up to 300ms
• DTMF transmission: In-band, RFC2833, SIP INFO

Network functions

• 2 ports 10/100 Mbit/s in Bridge operation mode
• IP receiving mode - Static, DHCP, PPPoE
• 802.1x support
• VPN support: L2TP (basic, unencrypted) / OpenVPN
• VLAN support
• QoS Support

Supported network protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP (Basic Unencrypted)
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

Management

• Auto-tuning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• WEB-based management
• Built-in utility for traffic interception
• Saving/loading the configuration file
• Automatic or manual download of new software
• Syslog Support

Physical characteristics

• 2.4” color LCD display with 320x240 pixels resolution
• 32 keys, including: - 4 soft keys - 12 Standard dial keys - 5 navigation keys - 2 backlit line keys - 5 function keys - 1 call repeat key - 3 volume control keys (increase, decrease, turn off the microphone) - 1 speakerphone key
• Frequency range of loudspeaker, microphone, Handset (0 - 7kHz)
• Processor Manufacturer: Broadcom
• Power supply: DC 5V/600mA
• Working temperature: 0~40℃
• Humidity: 10~65%
• Available colors: black, white, red, blue, yellow
• Package dimensions: 275x215x62mm
• Supported languages: English, Russian, Spanish, etc.
